ZL-67 Level 3 Water Washable Fluorescent Penetrant

Category: NDT

A high-sensitivity Level 3 penetrant, ZL-67 fluorescent water removeable penetrant is designed to find smaller, finer indications in safety-critical components common to aerospace and engineering applications. ZL-67 penetrant is often used to find flaws in investment castings, jet engine components, and highly machined surfaces.

ZL-67 is specially formulated for strong capillary action which allows it to penetrate defects quickly and bleed out into developer faster and more completely than other penetrants for stronger, higher contrast indications that are easier for inspectors to identify, even when the defects are very fine.

ZL-67 is listed on the QPL SAE AMS 2644 Qualified Product List and is approved for use by Pratt & Whitney.

Recommended developers are ZP-4D dry powder, SKD-S2 or ZP-9F solvent-based, and ZP-5B suspendible developers.

Benefits

Improve indication detection

Clear, bright, indications appear every time due to high UV and thermal stability
Higher contrast indications form due to strong capillary action, making them easier to spot

Wide range of inspections

Inspect a wide range of high-value components without fear of corrosion or specification non-conformance

More reliable, consistent inspections

Maintain penetrant system performance over longer periods of time thanks to low volatility and high water tolerance

Features

Level 3 high sensitivity
Water washable
Bright, high-contrast indications
High flash point
Wide range of application methods
Controlled washability
Low odor
Very low toxicity

Alloy compatibility
High water tolerance
High thermal resistance
High UV stability
Optimized capillary action
Low volatility
QPL SAE AMS 2644 Qualified Product List
Approved for use by Pratt & Whitney

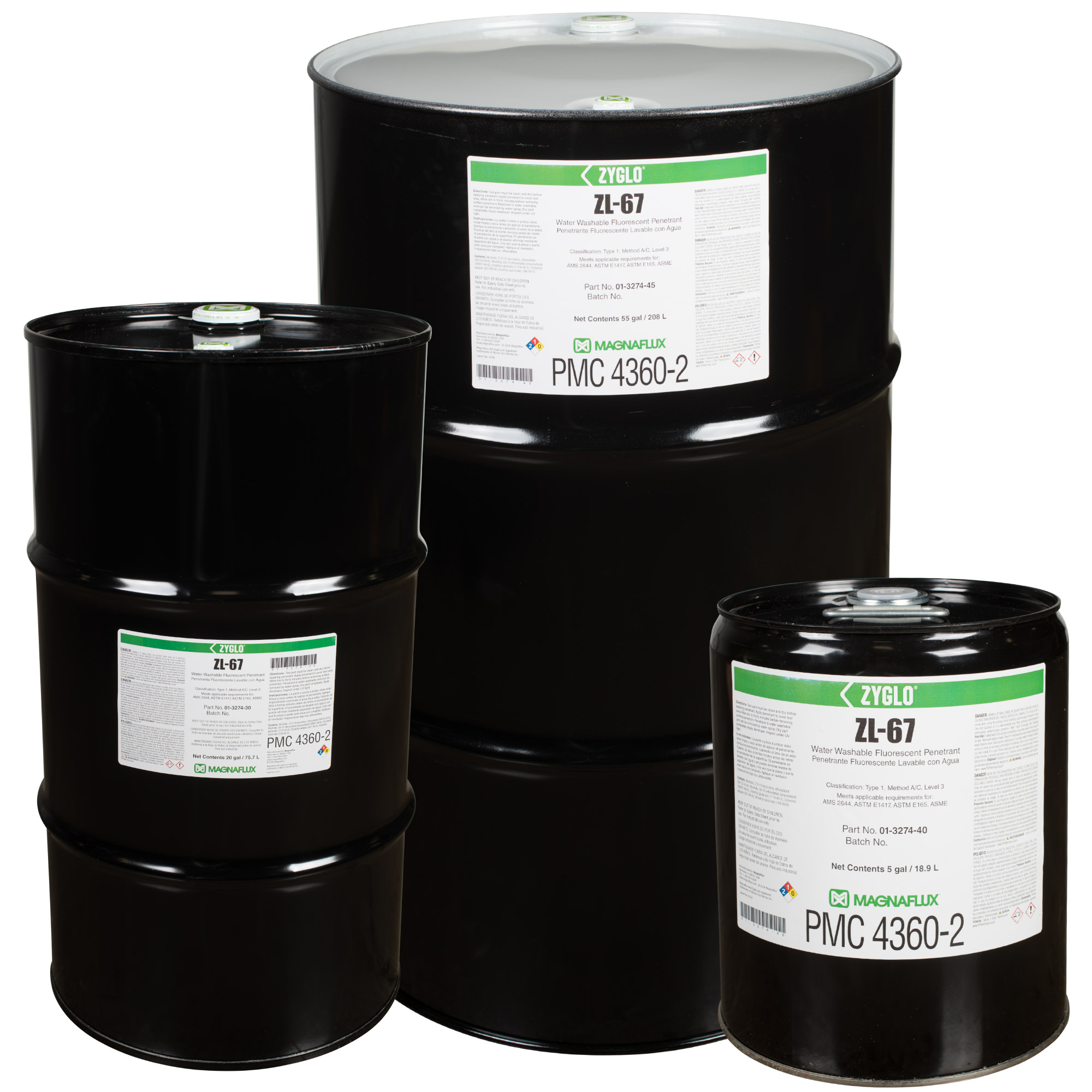

Ordering Information

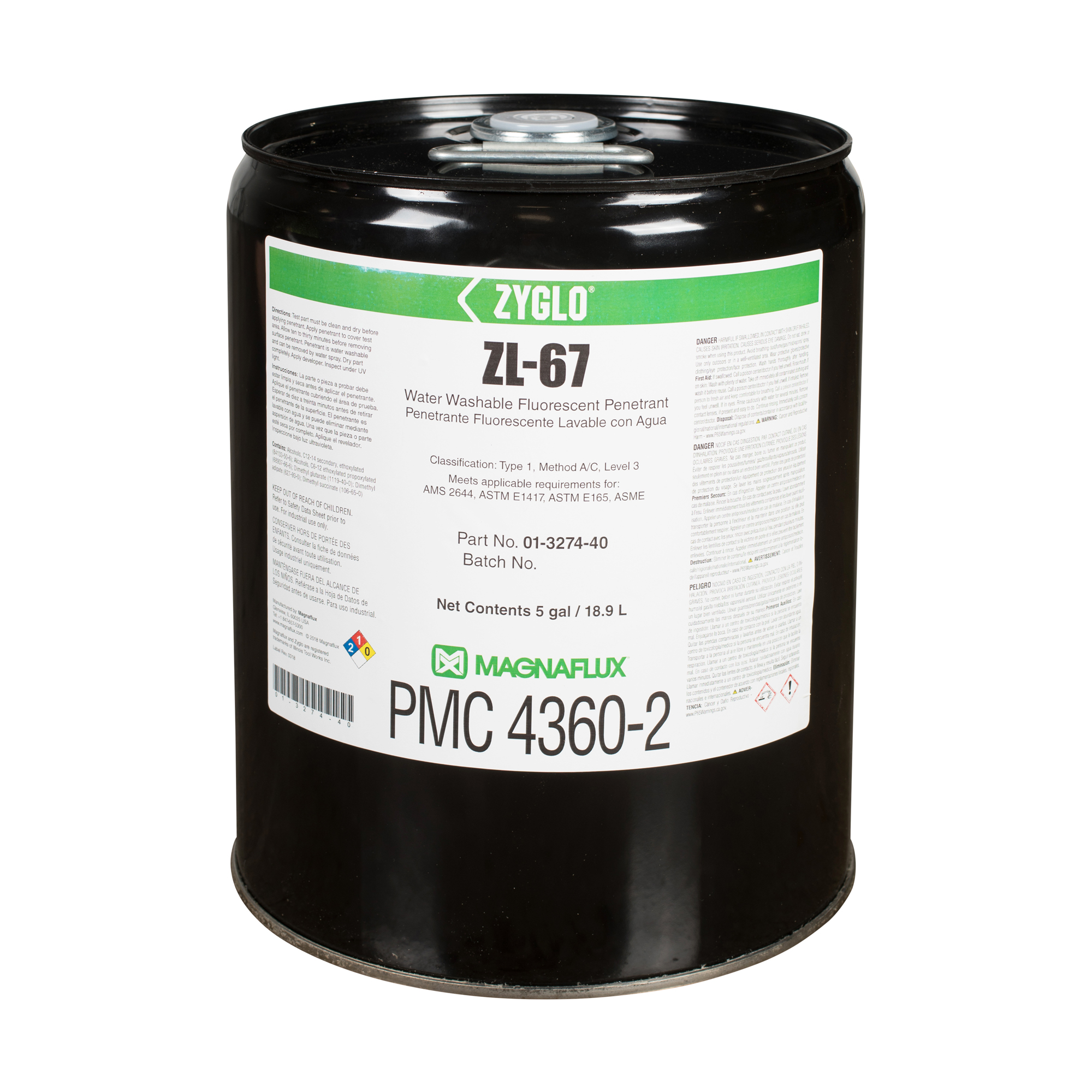

5 gal / 18.9 L: 01-3274-40

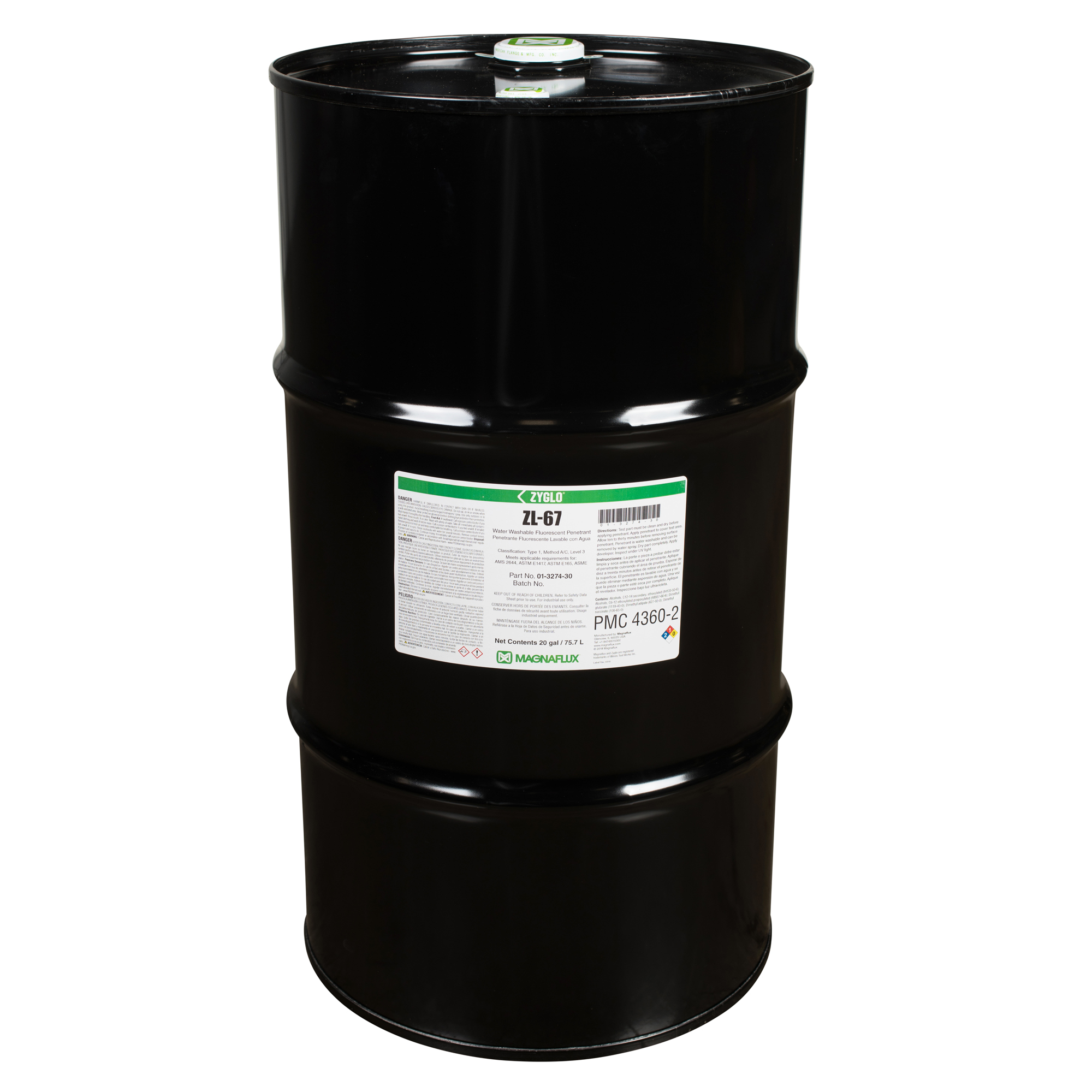

20 gal / 75.7 L drum: 01-3274-30

55 gal / 208 L drum: 01-3274-45

Product Properties

NDT Type: Fluorescent Penetrant Testing

Penetrant Type: Type 1

Fluorescent Penetrant Sensitivity: Level 3 – High Sensitivity

Penetrant Methods: Method A, Method C

Removal Type: Water Washable

Required Equipment: UV light source

Applications

Ideal Application: Aerospace alloys, Aerospace inspections, Aluminum, Engineering applications, Highly machined surfaces, Investment castings, Jet engine components, Machined components, Nickel, Precision castings, Precision forgings, Steel, Titanium

Defect Examples: Cracks, Porosity, Seams

Compliance

Standards: AECL, AMS 2644, ASME BPVC, ASTM E1417, Boeing BAC 5423 PSD 6-46 or 8-4, Boeing PS-21202, GE P3TF2, Honeywell EMS 52309, ISO 3452-2, NAVSEA T9074-AS-GIB-010/271, Pratt & Whitney PMC 4360, QPL SAE AMS 2644
