ATOS Q

ATOS Q

Reliable – a real ATOS sensor

In almost all industries, ATOS sensors have established themselves as optical 3D measuring systems. Their success is based on precise optoelectronics, robust sensor design and powerful software. ATOS Q takes this success story further: The sensor perfects the triad of design, technology and performance. The result: a versatile and compact system with real ATOS DNA.

Category: NDT

ATOS design

ATOS Q is specifically developed for industry use and delivers fully traceable measurement results—even under harsh conditions. The optical and electronic systems of the robust, optical 3D sensor are dustproof and splashproof, making all ATOS Q sensors ideally suited for the move from the measuring room to the shop floor. Users will appreciate the ATOS Q sensor because of its simple and convenient operation.

ATOS technology

ATOS Q captures quality information quickly and with a high degree of detail, providing a reliable basis to easily interpret this information. Its Triple Scan Principle offers advantages for measuring reflective surfaces and objects with indentations. The Blue Light Equalizer increases the brightness of the light source and transfers uniform, speckle-free light to the projection unit.

ATOS performance

Thanks to the Blue Light Equalizer and fast data processing, ATOS Q impresses with an outstanding performance. The Blue Light Equalizer enables high-speed fringe projection and is so powerful that even on uncooperative surfaces short measuring times can be achieved. Industrial ports with fiber optic cables and robust plug-in connections allow for high data throughput.

Versatile – ATOS Q rises to the challenge

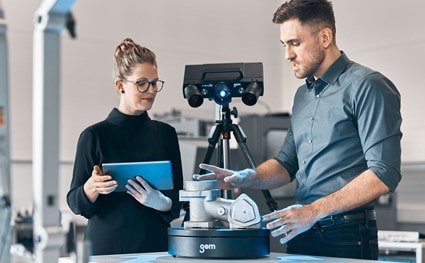

The compact ATOS Q sensor is very versatile. It solves complex measurement and inspection tasks in manual, semiautomated or fully automated operation on the GOM ScanCobot and in the ATOS ScanBox 4105.

ATOS Q is shaping quality

ATOS Q is designed as a flexible 3D scanner for complex measurement and inspection tasks in different industries. Interchangeable lenses ensure high-precision measurements of small to medium-sized parts. Changing from the smallest to the largest measuring volume is easy thanks to the fixed camera position.

	ATOS Q 8M	ATOS Q 12M
Light source	LED	LED
Points per scan	8 million	12 million
Measuring area [mm²]	100 × 70 – 500 × 370	100 × 70 – 500 × 370
Point distance [mm]	0.04 – 0.15	0.03 – 0.12
Working distance [mm]	490	490
Weight	approx. 4 kg	approx. 4 kg
Dimensions	approx. 340 mm x 240 mm x 83 mm	approx. 340 mm x 240 mm x 83 mm
Cable length	10 m fiber optic cable	10 m fiber optic cable
Operating system	Windows 10	Windows 10
Measuring volumes	100, 170, 270, 350, 500	100, 170, 270, 350, 500
